Create a SQL profile
Create a SQL profile
Menu Click
Click the Manage SQL Profiles link in the MCS administration menu as shown below.
Manage SQL profiles menu click
Create Button

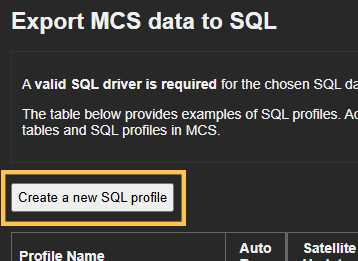

Click the Create a new SQL profile button.
Create profile button
Configure the Profile

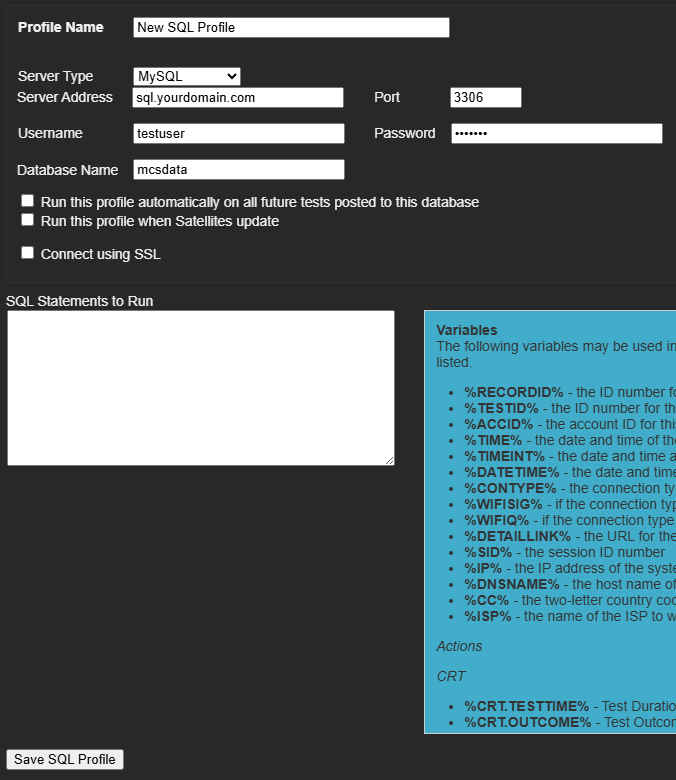

The configuration for an SQL profile is shown below.
New SQL profile configuration
| Setting | Description |
|---|---|
| Profile Name | A unique and descriptive name to identify the SQL profile. |
| Server Type | The type of SQL database (MySQL, MS SQL, PostgreSQL) associated with this profile. |
| Server Address | The IP address or domain name of the SQL database server. |
| Port | The network port number where the SQL database is accessible. |
| Username | The username authorized to access the SQL database. |
| Password | The password associated with the specified username. |
| Database Name | The specific name of the database to be used for data storage and retrieval. |
| Auto Run | If selected, this profile automatically activates whenever new data arrives in MCS. However, data will only export if it matches the criteria defined in the SQL statements. For example, if the profile is set up to export VoIP data but speed test data arrives, the profile will trigger, but no data will be exported. Additionally, events can also trigger SQL profile exports, not just incoming data. |
| Satellite Update | If checked, the SQL profile activates whenever a Satellite device checks in with MCS, allowing satellite data to be exported. |
| SSL | These options changes depending on the flavor of SQL selected in the drop down list box "Server Type" |
| SQL Statements | Specify the INSERT INTO statements for exporting data to the SQL database. Examples of proper syntax are provided on this page in the highlighted blue box and within other tutorials accessible from the menu on the left. |
MySQL Specific Configuration Options

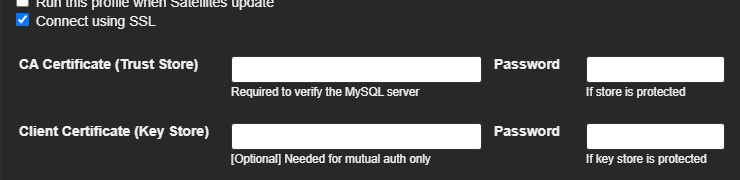

When Connect using SSL is checked the options below will appear.
MySQL SSL settings
To use SSL with MySQL, you must have a Certificate Authority (CA) certificate to validate the server, and optionally a Client Certificate if your MySQL server requires client authentication.
Certificate Authority (CA) Certificate
This certificate is used to verify the identity of the MySQL server — ensuring that your client is connecting to a trusted server.
Your MySQL server should be configured with a server certificate signed by this CA.
You must provide a Java keystore that contains this CA certificate.
Client Certificate [Optional]
This certificate is used to authenticate your client (MyConnection Server) to the MySQL server.
Whether a client certificate is required depends on your MySQL server’s require_secure_transport and user-specific SSL settings (e.g., REQUIRE X509).
If required, you must provide a separate keystore containing the client certificate and its private key.
Microsoft (MS) SQL Specific Configuration Options
If you enable the "Use Windows Authentication instead of the username/password above (Trusted Connection)" checkbox, the software will connect to the SQL Server using the Windows account currently running the application or service.
This means it will ignore any username and password entered above and instead rely on the operating system's built-in authentication.
For this to work, the SQL Server instance must be configured to allow Windows Authentication, and the Windows user must have the necessary permissions to access the specified database.
MS SQL Trusted Connection settings
There are important MCS version specific instructions for MS SQL drivers. Please review these when deciding which driver to use. Driver installation is discussed in this tutorial.
PostgreSQL Specific Configuration Options
The settings shown below are explained here in the user guide.
PostgreSQL SLL settings
