Configuration Options

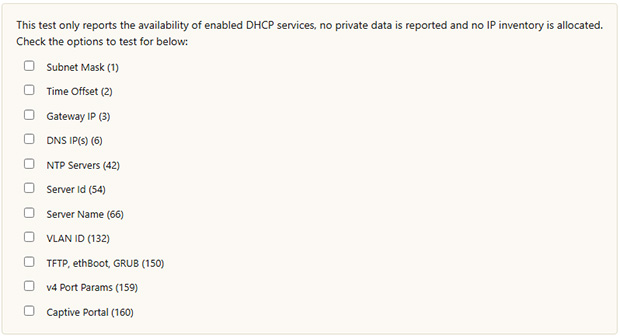

DHCP test configuration options
This test only reports the availability of enabled DHCP services. No private data is reported and no IP inventory is allocated.
Tick the boxes next to the DHCP services you want the test to check for. If no boxes are ticked, the test simply assesses whether an IP address was offered. Either way the test only assesses availability and does not consume an IP allocation.
Each option corresponds to a standard DHCP option code:
| Service | DHCP option code |
|---|---|
| Subnet Mask | 1 |
| Time Offset | 2 |
| Gateway IP | 3 |
| DNS IP(s) | 6 |
| NTP Servers | 42 |
| Server Id | 54 |
| Server Name | 66 |
| VLAN ID | 132 |
| TFTP, ethBoot, GRUB | 150 |
| v4 Port Params | 159 |
| Captive Portal | 160 |
