VoIP General Configuration

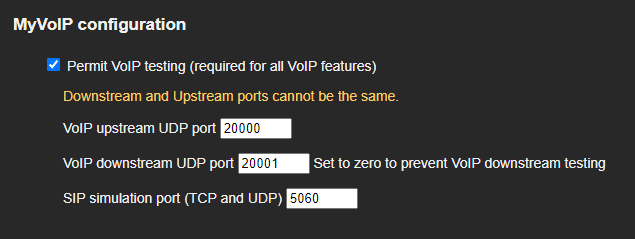

The VoIP configuration options for MCS are shown in the image below.

Permit checkbox:To disable VoIP testing entirely, uncheck this box.

VoIP upstream UDP port: The port set here will be used to simulate the upstream portion of the VoIP test.

VoIP downstream UDP port: The port set here will be used to simulate the downstream portion of the VoIP test. To disable downstream testing set the port to zero.

SIP simulation port (TCP and UDP): The port set here will be used to simulate SIP. The protocol for SIP - TCP or UDP - is set when a VoIP test is created.

Please note that any changes to the settings will not be saved until you click the "Save" button located at the bottom of the page.
